Tested Fire Protection Systems & Surveys | PFC Technical Services Ltd

Products

Working exclusively with Corofil manufactured products, all our passive fire protection systems are supported by independent UKAS accreditation's where appropriate. Evolution are also an affiliated Company, and we can provide fully tested fire doors, with full tracibility manufacture to completed installation.

CALL US

Please refer to our technical team for advice on any of our systems, or the associated products shown here.

To talk to us about any of our products or services please contact us.

GET IN TOUCH

PFCTS CF System

PFCTS CF Fire Protection System provides a method of increasing the fire resistance of timber floors without the need for removing ceilings. For technical information please contact us at: admin@pfctechnicalservices.co.uk for EU members - please contact us on admin@pfcts.ie

The PFCTS CF Fire Protection System has been tested in accordance with BS476 Part 21: and also EN 1365-2. Both tests were with a 2.4kN weight load applied to the floor. All test data is current.

PFCTS CW System

The PFCTS CW Fire Protection System provides a method of improving the fire and acoustic properties of existing timber stud partitions in refurbishment projects. Tested in accordance with BS 476:Part 22 The PFCTS CW Fire Protection System provides a minimum 1 hour fire protection for integrity and insulation.

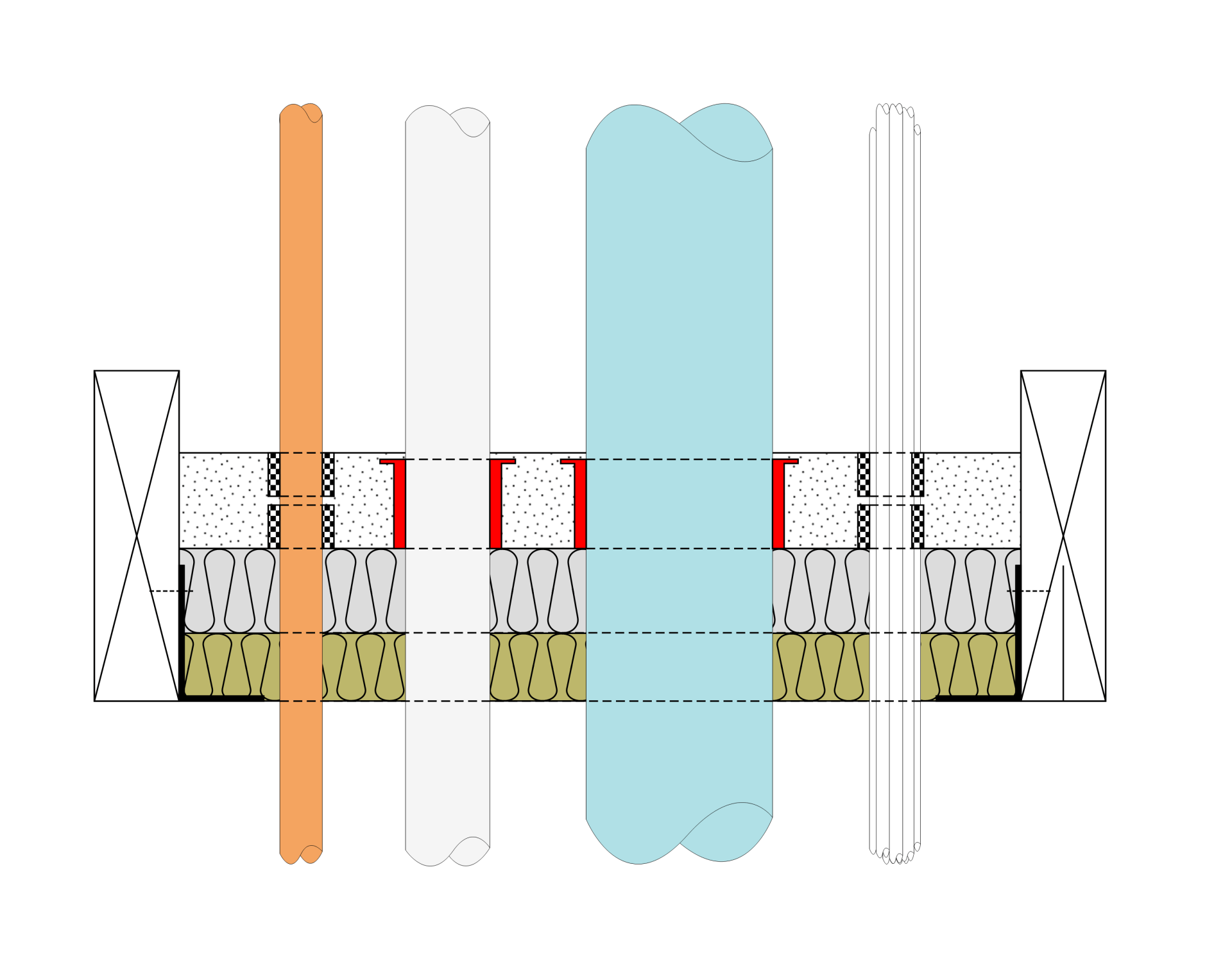

Service Penetration Packs - Tested through timber floor constructions EN 1366 - 3 - As tested in January 2020

Please advise of penetration requirements.

PFCTS Coroflor - Bespoke Fire & Sound System

Please refer to our technical team.

PFCTS Corowall - Bespoke Fire & Sound System

Please refer to our technical team.

H144 High grade Fire-Stop Compound

Used in conjunction with the PFCTS CF System for pipe penetrations through timber floors. Easily mixed to pour or trowel, depending on application. Tested in accordance with BS 476:Part 22, the fire-stop compound provides up to 6 hours fire protection.

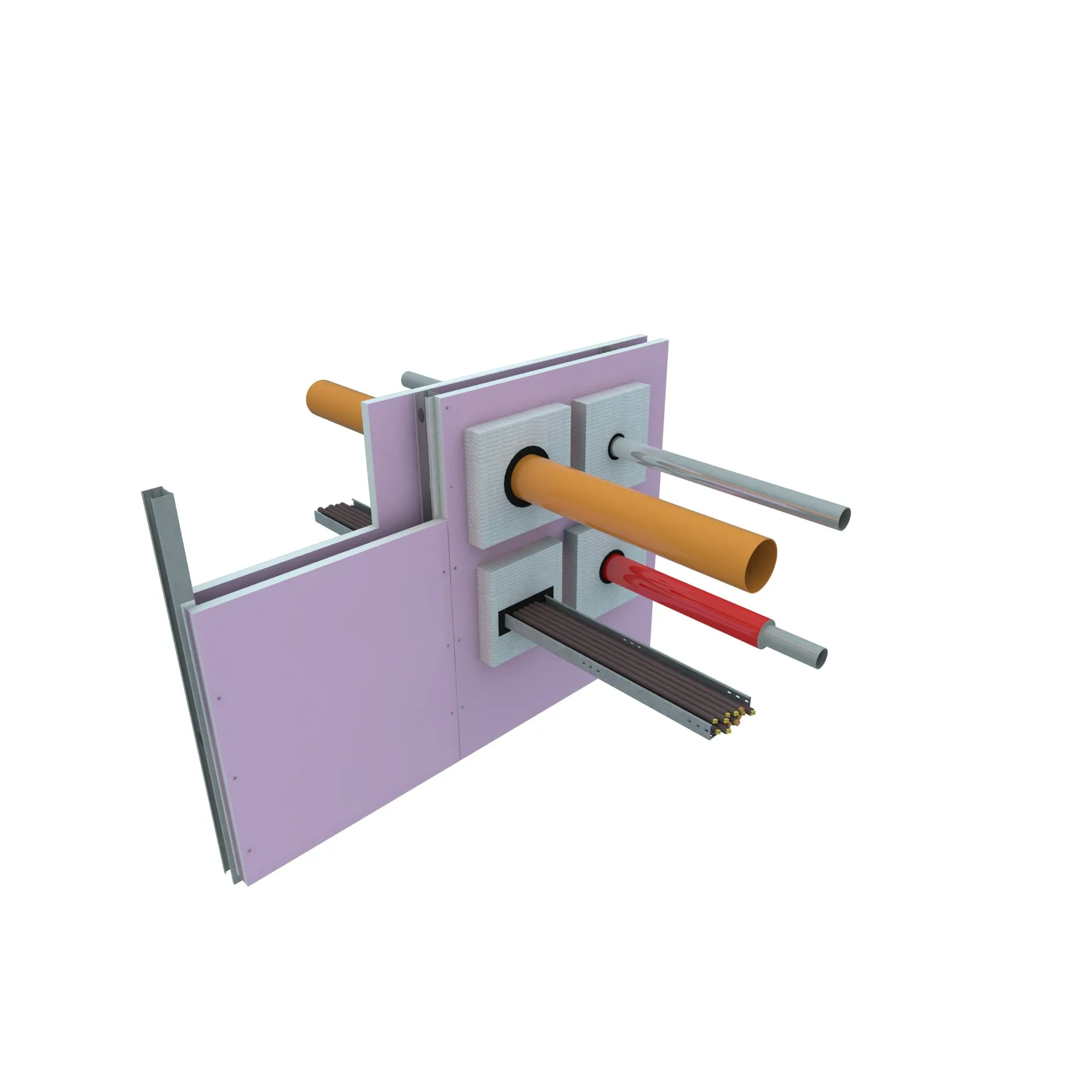

PFC TS Corofil Coated Panels

PFCTS High Density Fire Protection Coated/uncoated Panel is used to firestop mechanical, electrical and plumbing services where they pass through fire rated walls. Tested in accordance with BS 476 Parts 20 & 22:1987 & EN1366- 3:2009.

PFCTS Corofil Cut Blocks

C144 Firestop Blocks are used to firestop profiles in roofing, cladding and composite floor decking. The blocks are manufactured to suit the specific trapezoidal shape. The width is determined by the fire rating of the masonry wall (see fire rating table). When firestopping steel beams or plasterboard partitions the block must fill the full width of the beam or partition.

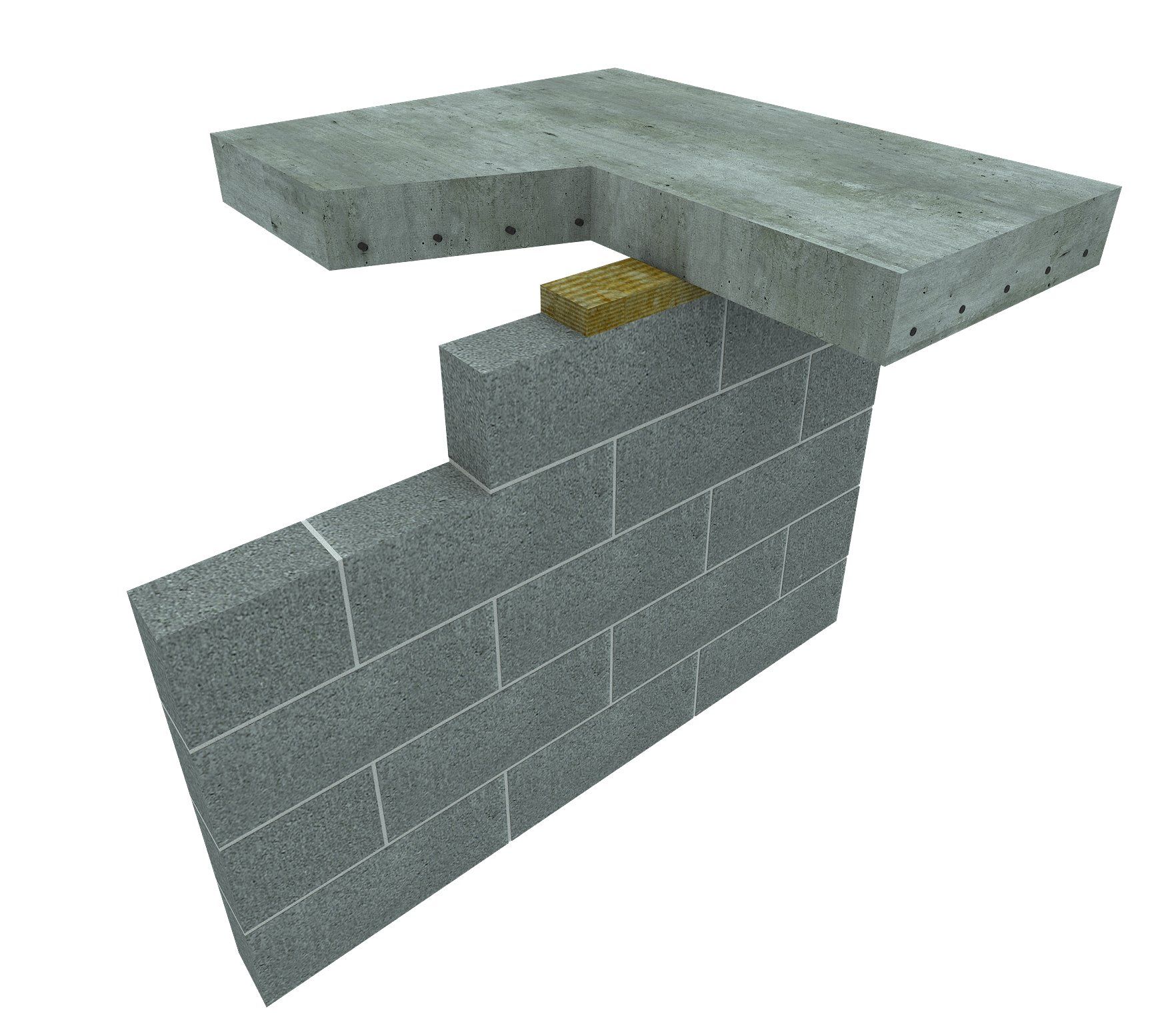

PFCTS Corofil Cut Strips

PFC Corofil C144 Firestop Strips provide firestopping for horizontal and vertical linear joints in masonry and concrete walls and floors. The strips are manufactured pre cut to fit the specific gap size and depth of the joint, depending on the fire rating required (see fire rating table). The thickness of the strip is supplied larger than the gap size, for a compression fit.

HIGH DENSITY FIRE RESISTANT SILICONE SEALANT

Corofil High Expansion Intumescent Sealant

Used around service penetrations in masonry walls, concrete floors and coated panels. Tested in accordance with BS EN:1366-3, the high expansion intumescent sealant exerts a positive pressure to create a joint or smoke seal and will provide up to 2 hours fire protection.

Linear Gap Intumescent Acoustic Sealant

Fire resistant intumescent sealant used to seal linear gaps in horizontal and vertical constructions. Can also be used to seal small gaps around metal based service penetrations through fire resistant constructions. Tested in accordance with BS EN:1366-4, this sealant provides up to 4 hours fire

protection.

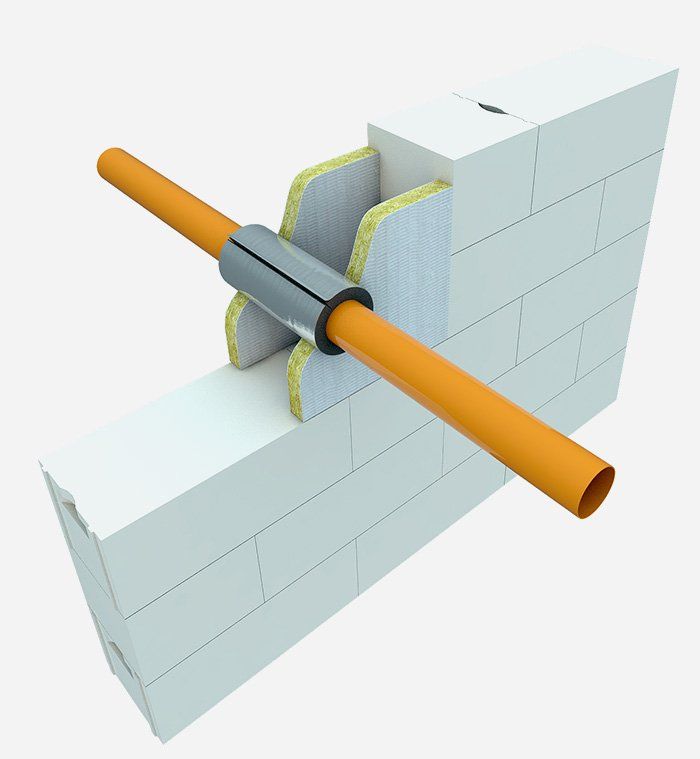

Intumescent Fire Sleeve

Intumescent fire sleeves maintain thermal performance of metal and plastic pipes (copper, mild steel, PVC, uPVC, HDPE, Polybutylene and ABS—please contact our technical team regarding suitability) whilst providing a fire seal where pipes penetrate walls or floors. Tested in accordance with BS EN:1366-3:2009 & BS 476:Part 20:1987, the sleeves provide up to 2 hours fire protection.

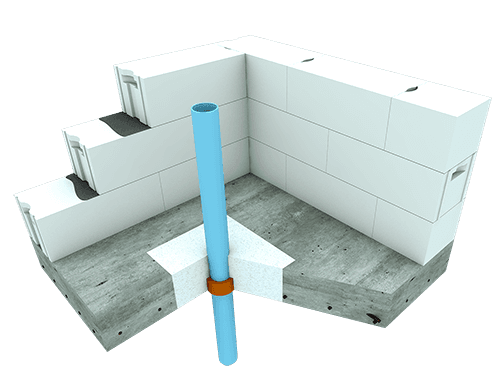

Intumescent Fire-Stop Wraps

A simple and economic way to provide fire protection to plastic pipework in walls and floors. Tested in accordance with BS 476:Part 20 and BS EN: 1366-3, the Intumescent Pipe Wraps provide up to 4 hours fire protection. Please contact our technical team to determine suitability for your requirements. Manufactured to the correct length and width to suit the outside diameter of pipe and fire protection rating required.

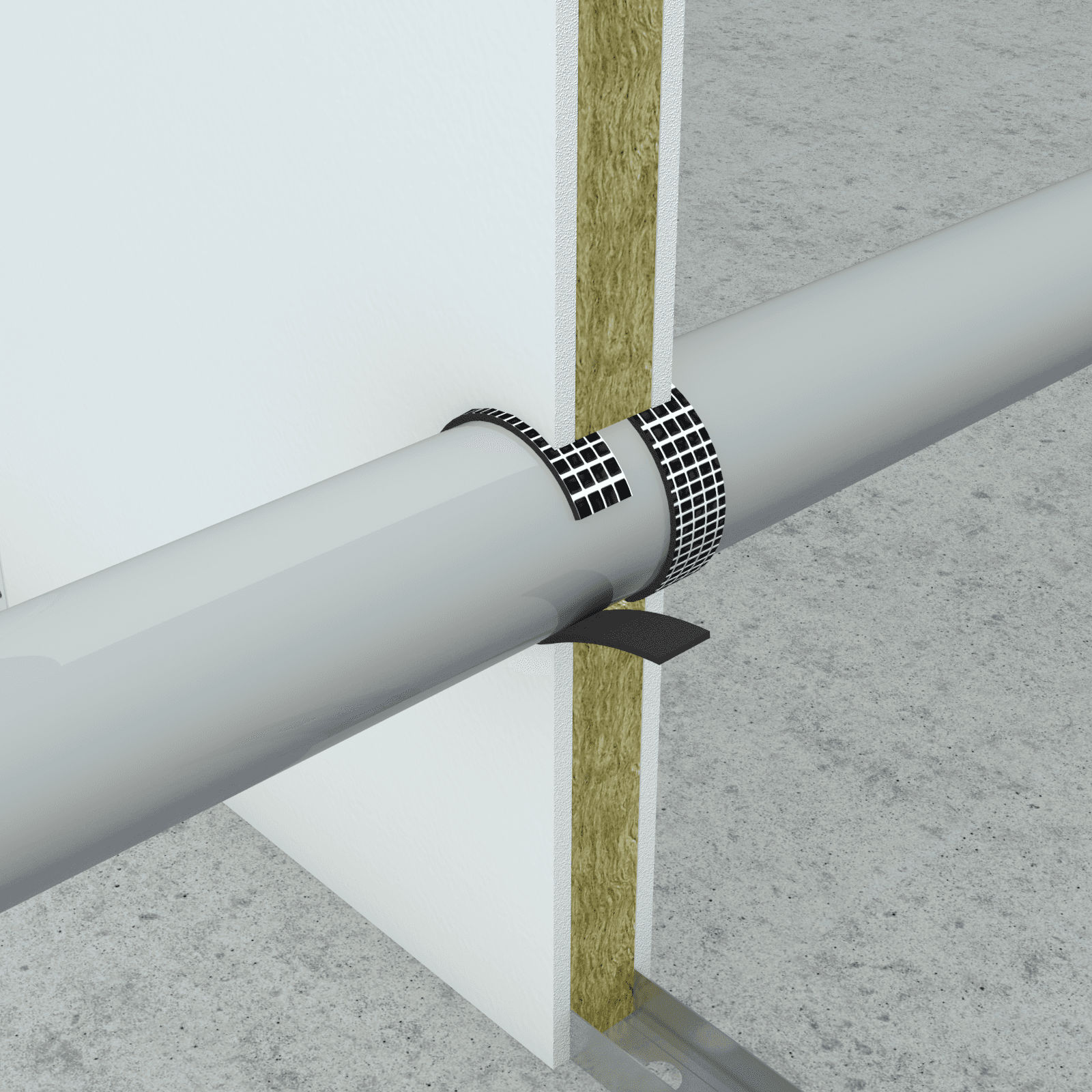

Intumescent Universal Pipe Wrap

Designed to seal penetration apertures containing plastic and metallic pipes, including insulated pipes, up to 250mm diameter, and provides high volume expansion to pressure seal in the event of fire. Tested to EN1366-3 for pipe sizes up to 250mm, the intumescent universal pipe wrap offers up to 2 hours fire protection.

Metal Cased Fire Sleeve

Metal Case Fire Sleeves provide up to 2 hours fire protection where metal and plastic pipes penetrate masonry/plasterboard walls and concrete floors and are available in various sizes. They are easy to fit and have been tested to BS EN:1366-3.

Intumescent insulated Fire Sleeve

Insulated Fire Sleeves are intended for use on copper, mild steel, PVC, uPVC, HDPE, Polybutylene and ABS pipes, to maintain thermal performance whilst providing a fire rated seal in walls and floors. Tested in accordance with BS EN:1366-3:2009 and BS 476:Part 20:1987, the sleeves provide up to 2 hours fire protection. Please contact our technical team to confirm suitability of use.

AFT Party Wall Closers

Designed to prevent fire penetration and sound transmission through the wall cavity of external party walls and separating floors, these are installed to close off masonry party wall cavities, providing a robust acoustic, fire and thermal seal. Tested in accordance with BS 476:Part 20:1987, the AFT Party Wall Closers provide up to 4 hours fire protection.

Evolution Fire Doors

The Evolution Fire Doors are manufactured by our affiliated Company Evolution, who are experts in their field, and this allows us to provide a complete Fire Protection solution to any building. Using the fully tested PFCTS CF & PFCTS CW Systems, Evolution's fully tested Fire Doors, compartmentation is complete in means of escape routes within a building.
